WIDE VIEWING CONE DISPLAYS

High-Quality WVA Display with Wide Viewing Angle

Get in Touch →
display

Wide Viewing Angle Display

For applications requiring a larger user experience, wide viewing cone technologies can open viewing angles to as much as 89 degrees from center without color or contrast shifts. Such displays are often stated to have symmetrical wide viewing cones.
Display viewing cones, or viewing areas, are typically described as the maximum angle from center for which an image is said to be viewable at an acceptable contrast ratio. Stated in degrees, displays with standard viewing cone specifications typically have 45-70 degree viewing angles in the left, right, up and down directions from center. Viewing such displays at angles greater than these specifications often result in image inversion, color changes and/or darkening of the image.

IPS LCD vs TN LCD

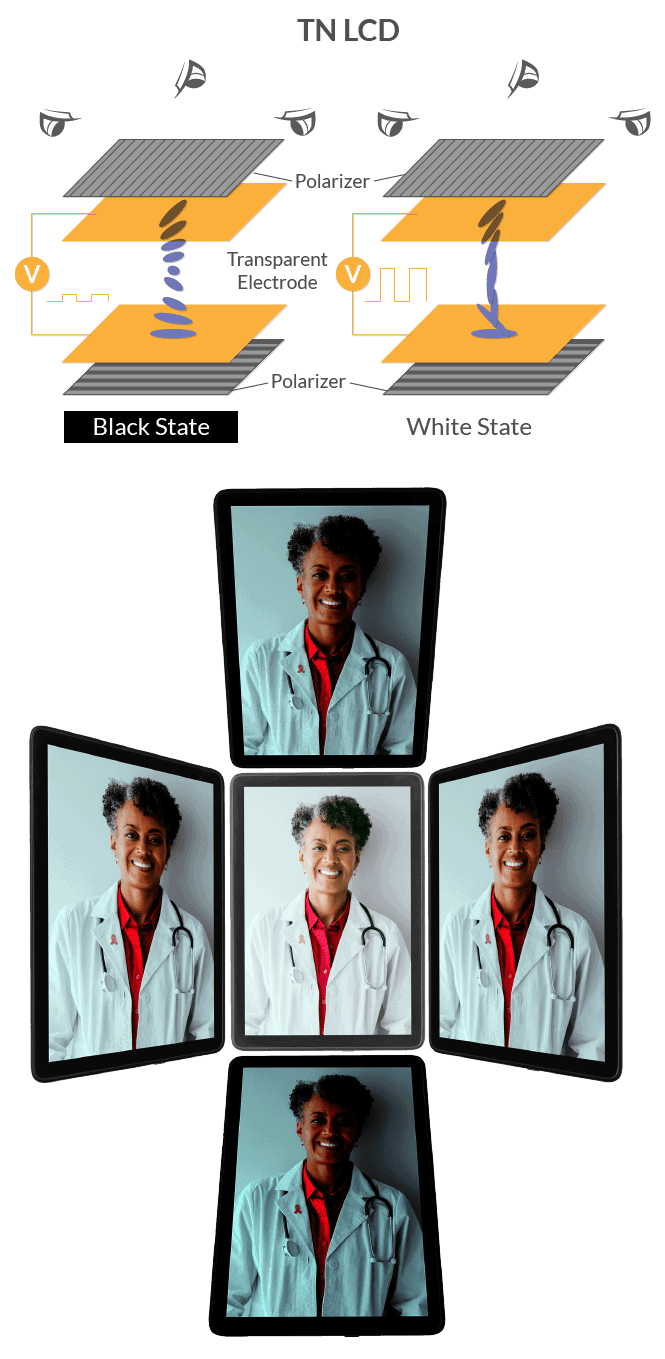

Conventional liquid crystal modes such as twisted nematic (TN) have problems such as brightness change and color shift depending on the viewing angle. In a TN LCD, the liquid crystal molecules stand up as voltage is applied to them. When liquid crystals are in an upright position, their visual characteristics vary significantly depending on the viewing angle. This results in variation in color and brightness from different viewing angles.

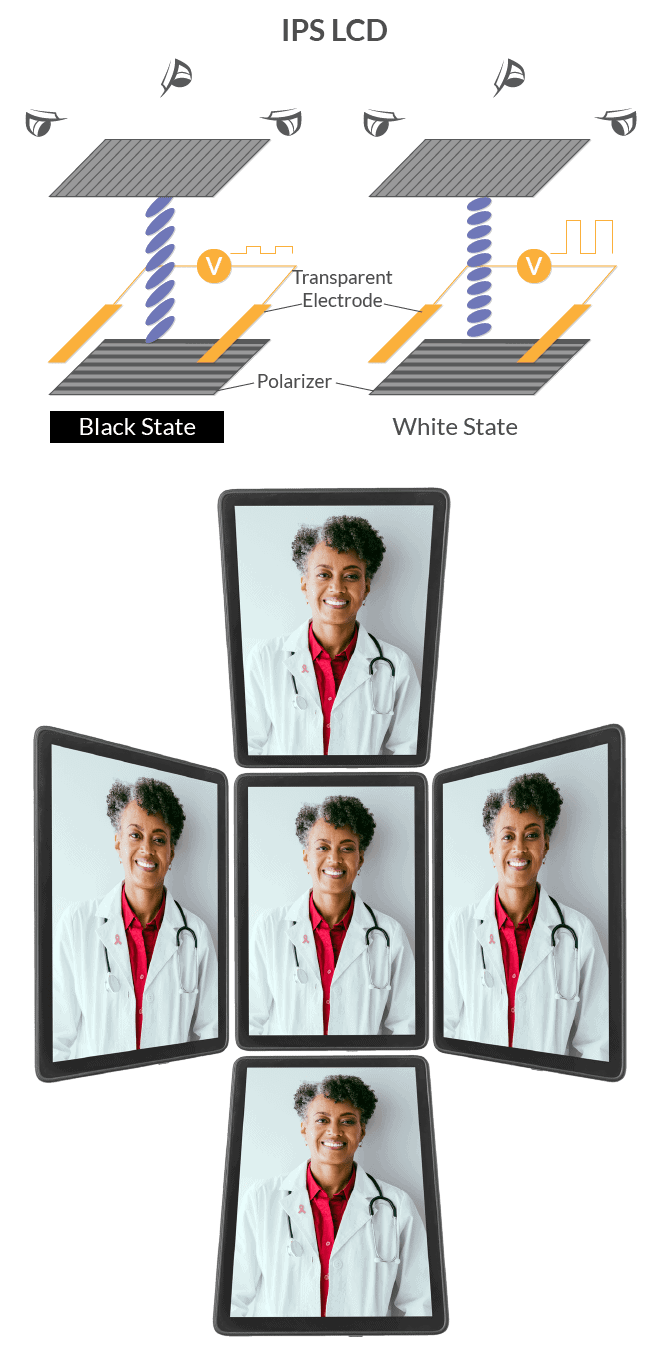

With in-plane switching (IPS) mode, the liquid crystal molecules rotate in parallel with the panel. This means that the variation depending on the viewing angle is limited to showing any changes in visuals. Therefore, IPS LCD provides limited changes in brightness and color irrespective of the viewing angle to produce high image quality.

IPS LCD
TN LCD

Benefits of Wide Viewing Angle Displays

Display Angle Up to 89 Degrees

Not everyone that views your display is going to view it from a perfect dead on angle. E3 can help enhance your displays to please your customers and choose the best display solution for the surrounding environment in mind so your display has optimum impact.

Full Definition Up to 4K Resolution

Your display is an investment into the future of your business and should never be just satisfactory. E3 enhancements are nothing short of high quality and improves the visual performance of your display so you stand out from your competition.

Custom Display Design

There is never a one size fits all display. E3 works with you side by side to select and customize a display solution made for you and your goals so you can have highly efficient and cost effective tools.

Professional Commercial Grade Options

E3 displays will enhance the best display solution that can withstand the toughest requirements so you can focus on what you do best, providing high quality customer service.

Option of Landscape or Portrait

Adaptability to space is important in identifying a high quality display. E3 Displays can enhance wide viewing cone displays in landscape or portrait orientation.

Up to 24/7 Usage

Never miss the eyes of potential customers. Wide viewing cone displays can work around the clock attracting customers.

Our Experienced Team is Ready to Help

Our E3 Displays team has expertise in every type of display technology, whether big or small. We will help you choose or design the display that best fits your needs, while always keeping quality and budget in mind. Here at E3 Displays, we specialize in custom displays use our product selection guide today to get started on your project today!
